集显主板

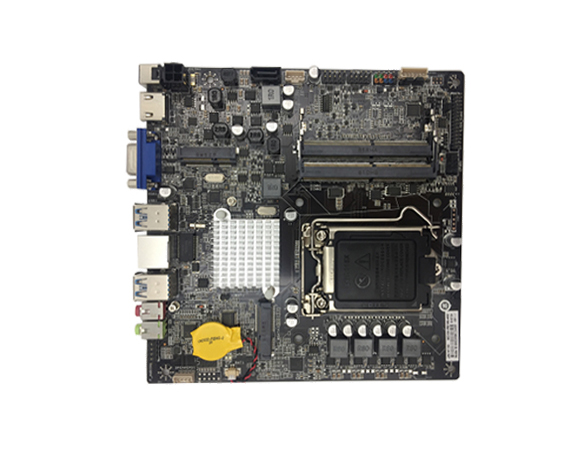

名称MITX-Q370/C246/H310A

9th/8th Intel® Core™, Intel® Q370/C246/H310 2 DDR4 2400/2666MHz SODIMM up to 32GB 三个独立显示输出: LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++ 多重扩充插槽: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe (Q370/C246); 1 PCIe x16 (Gen 3), 1 mSATA (H310) 丰富 I/O: 2 网口, 2 串口, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0 (Q370/C246); 2 网口, 2 串口, 4 USB 3.1 Gen 1, 4 USB 2.0 (H310)
服务热线 :0755-32842682 21071514
在线咨询
扫一扫,与微信对接咨询
厂家实力有效保修质量保障

MITX-Q370/C246/H310A

  • 产品详情
  • 规格参数
  • 驱动下载
  • 说明书下载
在线咨询
处理器
9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W
Intel® Xeon E-2176G Processor (Core 6; Max speed 4.7 GHz; TDP 80W) (support ECC Memory)
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC Memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC Memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC Memory)
芯片组
Intel® Q370/C246/H310 Chipset
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400/2666MHz (C246 supoort ECC)
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 630 (Pentium G5400, Celeron G4900 support Intel® UHD Graphics 610)
特性
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x LVDS
1 x VGA
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
三重显示
LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++
扩充
界面
Q370/C246:
1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (& mSATA)
H310:
1 x PCIe x16 (Gen 3)
1 x mSATA
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网络
控制器
C246/Q370: 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)
H310: 1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)

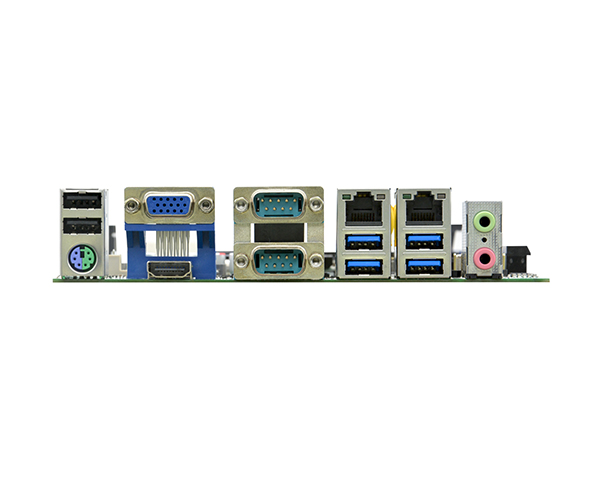

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232 (DB-9)
USB
Q370/C246:
2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
4 x USB 2.0
H310:
4 x USB 3.1 Gen1
4 x USB 2.0
显示
1 x VGA
2 x DP++
音源
1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
内部输入/输出
串行端口
1 x RS-232 (RS-232 w/ power)(2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
音效
1 x S/PDIF
1 x Front Audio
SATA
3 x SATA 3.0 (up to 6Gb/s) (RAID 0/1/5)
DIO
1 x 8-bit DIO
LPC
1 x LPC (support LPC EXT-RS232/RS485 module)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM2.0 (available upon request)
电源
类型
ATX
端口
4-pin ATX 12V power
24-pin ATX power
耗能
Idle: i7-8700 65W: 12V @ 0.39A (4.68W), 5V @ 0.53A (2.65W), 3.3V @ 0.23A (0.795W)
Max: i7-8700 65W: 12V @ 11.24A (134.88W), 5V @ 1.14A (5.7W), 3.3V @ 0.25A (0.825W)
电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
CS100-C246: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C
CS100-Q370: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C
CS100-H310: 640,703 hrs @ 25°C; 393,874 hrs @ 45°C ; 259,692 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm

定制:MITX-Q370/C246/H310A
